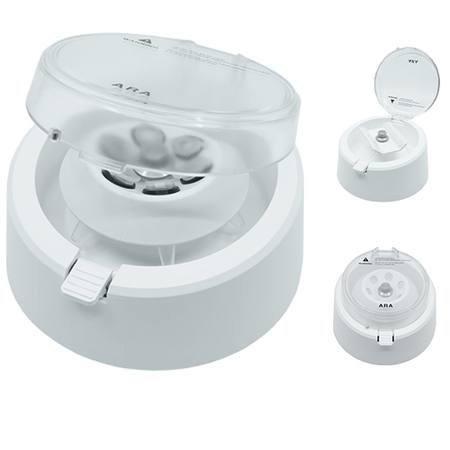

Model #mini6 || Made in S.Korea
One spin action simply by closing the lid
Safety stop by opening the lid
Selectable operation modes between short spin and continuous 15 minutes
Interchangeable rotors for 6 micro tubes and 2 PCR strips
Electro sensitive non-contacting lid sensor
Interchangeable rotors for 6 micro tubes and 2 PCR strips
Electro sensitive lid sensor
Useful when there are not enough power lines in BSCs, refrigerators incubators, Etc by running on rechargeable Li-battery. (M6-RC only)
Can be used immediately for outdoor or on-site experiments. (M6-RC only)
Documentation
[PDF] Gyrozen Mini 6 Catalogue
[PDF] Gyrozen Mini 6 Quick Guide
[PDF] Gyrozen Mini 6 Manual
Specifications | Description |
---|---|
Max. RPM | 6,500 RPM |
Max. RCF | 2,234 x g (1.5/2.0 mL Tube) / 2,182 x g ( PCR Strip) |
Capacity | 6 x 1.5/2.0 mL, 2 x 8-Tube PCR Strip |
ACC Time to Max Speed | 3 sec |
DEC Time from Max Speed | 4 sec |
Operation Mode | Selectable, Short Spin (10 sec) or Continuous (15 min) |
Dimension (W x D x H) | 150 x 150 x 90 mm |
Weight | 650 g |
Power Supply | AC 100~240V 50/60Hz 2A |
Cat no. | BMSAC-MINI6 |
