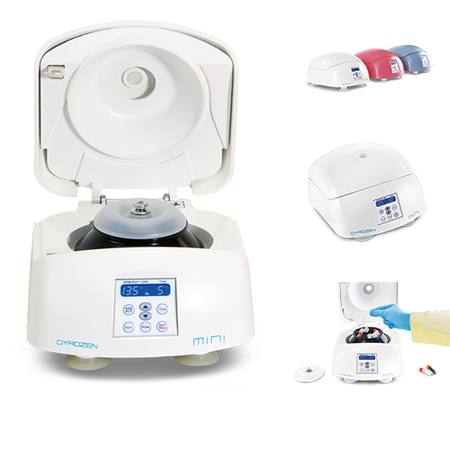

Gyrozen mini personal centrifuge
Freephone: 0800 257 428 Email: sales@alphatech.co.nz
Model #mini || Made in S.Korea
12 microtubes or 10 cryotubes can be run up to 13,500 rpm (12,300 xg).
Compact design built to accommodate PCR tubes, microtubes and cryotubes (0.2 to 2.0 ml)
Patented air-cooling to minimize noise and heat generation
A separate "PULSE" key for quick spin
Very quiet operation at less than 56 dB allows for comfortable laboratory environment.
Supplied with autoclavable 12-place fixed angle micro-rotor, snap-fit plastic rotor lid and 12 adaptors for 0.2 ml PCR tubes
Documentation
[PDF] Gyrozen Mini 6 Specifications
[PDF] Gyrozen Mini 6 Manual
| Specifications | Description |
|---|---|
| Max. RPM | 13,500 rpm |
| Max. capacity | 12 x 1.5/2.0 ml 4 x 8-tube PCR strips |
| RPM/RCF conversion |
Yes |
| ACC / DEC (sec) |
≤12 / ≤16 |
| Parameters on display window | RPM (RCF), Oper Status, Door Open/Close, Min(sec) |
| Safety lid lock | Yes |
| Power supply | 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional) |
| Dimension (W x D x H, mm) | 208 x 245 x 145 |
| CE MARK | Yes |
| Max. RCF | 12,300 xg |
| Time control | Pulse or timed ≤30 min |
| Noise level (dependent on rotor) | ≤56 dB |
| DEC time from max. speed | ≤16 sec |
| Display | Blue LCD |
| Automatic lid release at completion | Yes |
| Power Requirement (VA) | 110 |
| Weight without rotor (kg) |
4.4 |
