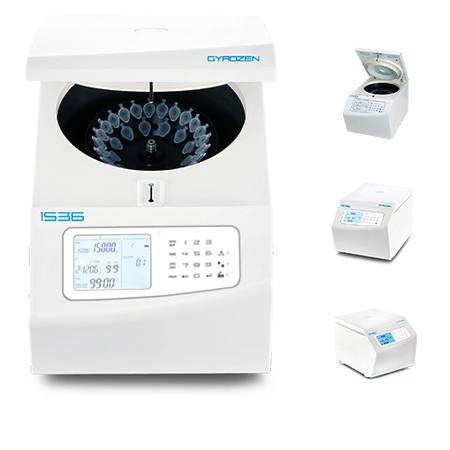

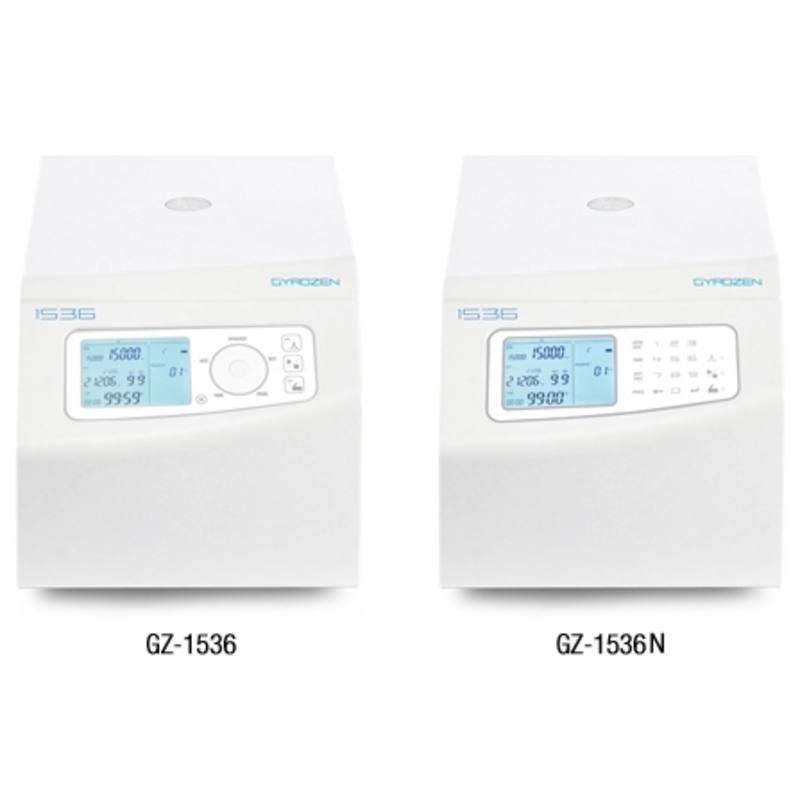

Model #1536 || Made in S.Korea
Compact design built to accommodate PCR tubes, microtubes and cryotubes (0.2 to 2.0 ml)
Soft touch control panel and trendy touch wheel is highly sensitive and intuitive to input parameters.
3.5" LCD window with simultaneous display of all operational parameters of set and actual figures
Selectable time mode of "at set SPEED" for counting running time only when reached the set speed
A separate "PULSE" key for quick spin
Parameters can be changed during operation.
Key lock function helps the set-parameters secured during operation.
Lid drop protection design allows easiness and safety when loading or unloading sample.
With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
Bio-seal (Public Health England Porton Down) certified Easy-lock rotor
Documentation
[PDF] Gyrozen 1536 Specifications
[PDF] Gyrozen 1536 Quick Guide
[PDF] Gyrozen 1536 Manual
[Youtube] View Youtube Demo Here
| Specifications | Description |
|---|---|
| Max. RPM | 15,000 rpm |
| Max. RCF | 21,206 x g |
| Max. Capacity | 36 x 1.5/2.0 ml, 10 x 5.0 ml, 4 x 8-tube PCR strips |
| Time control | 3 sec |
| Time counting range | 4 sec |
| RCF/RPM conversion | Selectable, Short Spin (10 sec) or Continuous (15 min) |
| Noise level (dependent on rotor) | 150 x 150 x 90 mm |
| ACC/DEC (sec) | 650 g |
| ACC/DEC ramps | AC 100~240V 50/60Hz 2A |
| Program memory | 100 |
| Parameters on display window | Simultaneous display of all parameters of set and actual figures |
| Display | 3.5" LCD |
| Imbalance cut-off | Yes |
| Safety lid lock | Yes |
| Lid drop protection | Yes |
| Automatic lid release at completion | Yes |
| Power supply | 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110V optional) |
| Power Requirement (VA) | 450 |
| Dimension (W x D x H, mm) | 240 x 378 x 240 |
| Weight without rotor | 11.9 kg |
| CE MARK | Yes |
| Motorized lid open & close | Yes |
