Gyrozen Compact 1536 Micro Centrifuge
Support of Qualified Staff
Quick Quotations
EXCLUSIVE NZ Dealer
Service Engineers on Hand

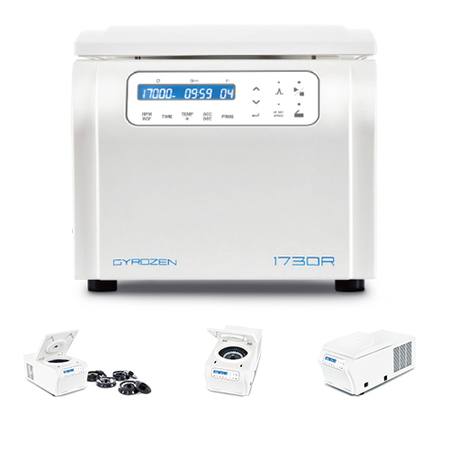

Model #1730R || Made in S.Korea
The refrigerated microcentrifuge, 1730R is a "must-have" item for molecular and cellular lab works with max speed of 17,000 rpm (27,237 xg)
Maximum capacity for 12 x 5 ml tubes or 30 x 1.5/2.0 ml tubes or 18 microfilter tubes or 64 PCR tubes
Fast cooling function to 4 °C in 5 minutes for fast start up of cooled samples
The compressor-off function when lid is open minimizes unnecessary cooling and frosting.
Teflon coated rust-free chamber
Very quiet operation at less than 56 dB allows for comfortable laboratory environment.
Selectable time mode of "at set SPEED" for counting running time only when reached the set speed
A separate "PULSE" key for quick spin
Parameters can be changed during operation.
Key lock function helps the set parameters secured during operation.
Bio-seal (Public Health England Porton Down) certified Easy-lock rotor
Documentation
[PDF] Gyrozen 1730R Brochure
[PDF] Gyrozen 1730R Quick Guide
[Youtube] View Youtube Demo Here
Specifications | Description |
---|---|
Max. RPM/ RCF (Fixed angle) | 17,000 rpm/ 27,237 x g |
Max. RPM/ RCF (Swing-out) | 13,000 rpm/ 16,343 x g |
Max. capacity / Fixed angle | 30 x 1.5/2.0 ml, 12 x 5.0 ml, 8 x 8-tube PCR strips |
Max. capacity / Swing-out | 16 x 1.5/2.0 ml |
Temp range (℃) | - 20℃ to 40℃ |
FAST cool button | Yes |
Time control | Pulse, timed < 100 min or continuous |
Time counting range | Selectable, at set speed or from starting |
RPM/RCF conversion | Yes |
Noise level (dependent on rotor) | ≤56 dB |
ACC/DEC | ≤17/≤17 |
ACC/DEC ramps | 9/10 |
Dec. time from max. speed | ≤15 sec |
Program memory | 100 |
Parameters on display window | RPM (RCF), Oper Status, Lid Open/Close, Min:Sec, Temp, ACC, DEC |
Display | Blue LCD |
Automatic rotor identification | Yes |
Imbalance cut-off | Yes |
Safety lid lock | Yes |
Lid drop protection | Yes |
Power supply | 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110V optional) |
Power Requirement (kVA) | 2.0 |
Dimension (W x D x H, mm) | 310 x 620 x 265 |
Weight without rotor (kg) | 43 |
CE MARK | Yes |
