Goojung TCS Total Concentration System
GOOJUNGTCS
Enquire about this item

Buy Goojung TCS Total Concentration System in NZ.

Evatros T.C.S™ is a total concentration system featuring an evaporator, ventilation system and gas generator.

Evatros C, an evaporator, concentrates up to 48 samples at the same time and the terraced structure and slit of the aluminium heating block enable users to monitor the progress of sample preparation.

Evatros G, a gas generator, selectively supplies either nitrogen or dry air depending on the experimental purpose of users.

Evatros C - Gas blowing evaporator

Up to 48 sample concentration- 5-way gas blowing nozzle system
Adjustable nozzle height with Up/Down button or Joy stick
Terraced structure of aluminum heating block (Temperature range: ambient to 80℃)
Easy sample monitor through the glass window of the front door and slit of the heating block.
Built-in ventilation system venting toxic gases safely
Pull-out shelf enabling a user to arrange test tubes in the heating block conveniently
Timer preventing samples from over-drying
Option 1: Acid-proof option
Option 2: UV blocking option

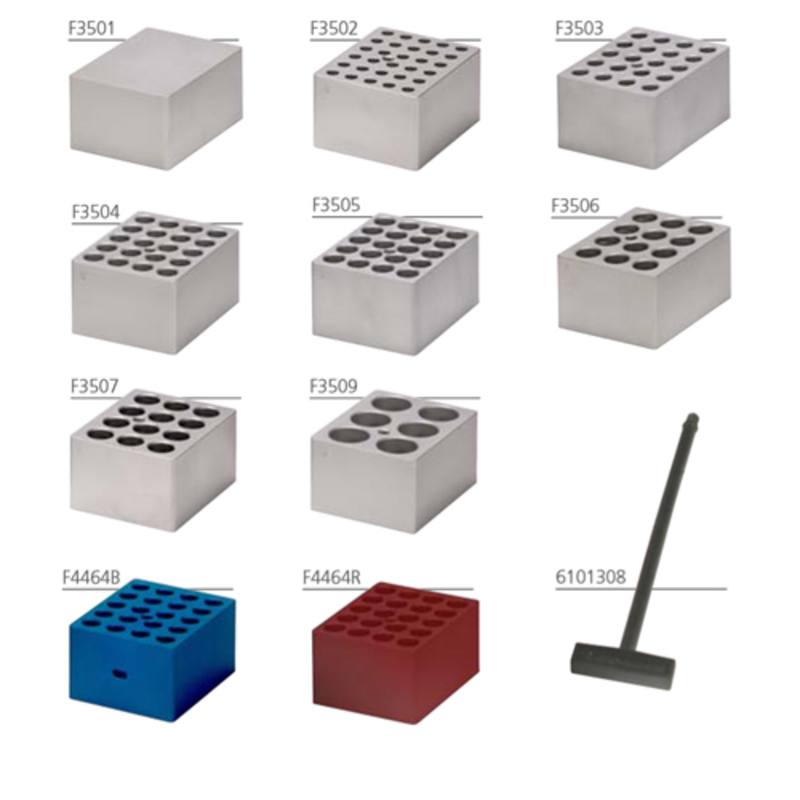

Option 3: Various size of heating blocks fiting the size of user's test tubes
(Replaceable heating blocks depending on the size of test tubes)

Evatros G - Gas generator

Switchable button between nitrogen mode and dry air mode
Built-in dual air compressor system
High purity nitrogen and dry air through membrane
Low noise design

Application

Food
Pharmaceutical Industry
Forensic science
Medical Industry
Chemical Industry
Water Quality Environment
Agriculture and Fishery products
Livestock Environment
Cosmetic Industry

View/Download brochure

Specifications

Nozzle	48 nozzles with 5 holes & flow rate & pressure are adjustable
Minium Gas Inlet	Nitrogen Gas: 60L/min @30psi, Dry Air: 120L/min@30psi
Heating Block Material	Aluminium
Heating Block Temperature	Ambient ~ 80℃
Electrical Requirement	220[V], 50/60[Hz], 2.5[A]
Dimensions (cm)	70(H) x 64(W) x 65(D)
Weight (KG)	95
