CDR FoodLab systems for fats and oils are analysis systems that can be used to control the quality of oils and fats at the production lines, in real time.
They enable the user to carry out a wide range of tests with a single instrument and in much less time as compared to traditional methods. The analyses panel is specific for the quality control of fats and oils:

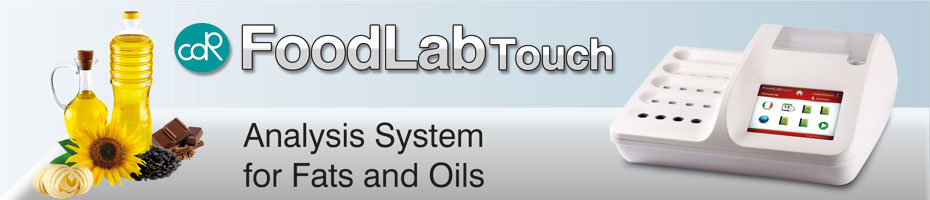

CDR FoodLab Touch: designed for different kinds of fats and oils, is configured with the complete analyis panel (complete configuration)It is able to analyse 16 samples at the same time, fitted with 5,7" LCD touchscreen, printer, incubation cells, ethernet (LAN) connection,USB for PC connection, USB for the transfer of the analyses data.
CDR FoodLab Junior: designed for different kinds of fats and oils, can be configured with some analyses of your choice (tailored configuration) It is able to analyse 3 samples at the same time, fitted with 4,3" LCD touchscreen, USB for PC connection, bluetooth 2.1

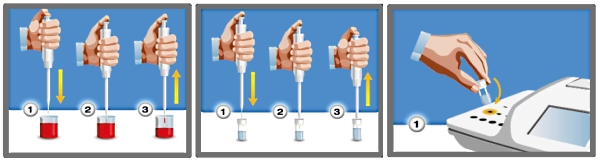

Each test is performed by dispensing a pre-determined amount of sample into the cuvette containing the buffer. A colourimetric reaction then takes place which is read by the analyser.
The results of the test are produced immediately after the photometric reading, in its relative unit of measure.
The systems are designed to be used by anyone, without the support of skilled staff. The analysis methods are easier than traditional ones and can be performed in only a few steps. If any prompting is needed, the "step by step" guide, directly displayed on the touchscreen, leads theoperator through the process.
This measuring system owes its sensitivity, accuracy and reliability to the photometric technology based on LED luminous sources.
The results of the analyses are correlated with reference methods.
It is possible to analyse 16 samples at the same time and to constantly monitor the production process, obtaining exact and accurate answers in just a few minutes.
The multitasking mode allows the user to manage the determinations of several analytical parameters at the same time. It allows the system to process one analysis and to start another one at the same time, with the option to return to the first one anytime.
In conclusion, here is how CDR FoodLab systems simplify and support food quality control:
AnalysisCDR FoodLab systems for fats and oils are the ideal solution to control the quality at production lines in real time. This is why they are used by several food industries worldwide that use oils and fats as ingredients. For instance:
|
Analytical Kits
|
Technical Specifications of CDR FoodLab Systems
|
