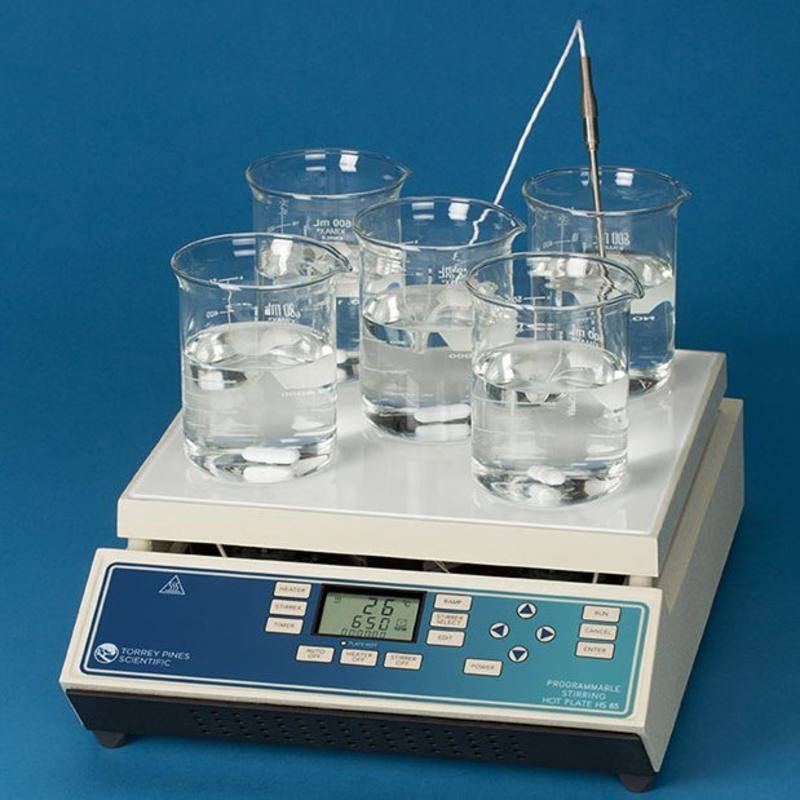

Torrey Pines EchoTherm HS55 digital 5-position stirring hot plates
TPHS55
Enquire about this item
Buy Torrey Pines EchoTherm HS55 digital 5-position stirring hot plates in NZ.

The EchoTherm HS55 is designed to be the easiest to use and most accurate fully featured multi-position stirring hot plates in the world. Temperature measurement of a solution is accurate to 1% over the entire temperature range using a 100 ohm platinum RTD sensor and measurement system.

Calibration of temperature is electronic and stored in memory. The calibration is set at the factory but can be done easily in the field using the probe calibration kit accessory.

The chassis is cast aluminum and designed to keep spills and heat out of the electronics. They are coated with chemically resistant epoxy based paint for durability.

HP in model number = hot plate
HS in model number = stirring hot plate

FEATURES:

  • 5-stirring positions. All the same speed or each at a separate speed
  • Extremely easy use by anyone in your lab
  • Platinum RTD temperature measurement for precision and accuracy
  • Solid ceramic heater top for quick heating on a flat, white, chemically resistant surface. Heat to 400 centigrade maximum
  • Temperature ramping for exact heating and cooling rates
  • Cast aluminum framed ceramic heater top edges stay cooler to prevent burns
  • PID temperature control for exact, tight sample control of plate or solution
  • Timer goes up to 99 hours, 59 minutes, 59 seconds with settable Auto-Off for exactly timed sample preparation
  • Electronic calibration stored in chip. No batteries to replace
  • Strong motor and magnet for stirring most samples
  • Stir 5-800 ml beakers of aqueous solutions
  • Full-featured digital display for checking all parameters instantly
  • Fused for safety
  • UL, CSA and CE certified
