(Crop kit) Nitrate Ion Meter Kit
Freephone: 0800 257 428 Email: sales@alphatech.co.nz
![Buy [SOIL KIT] Nitrate Ion Meter Kit in NZ.](/public/img/site/alphatech-co-nz/m/nitrite-1406723.jpg)

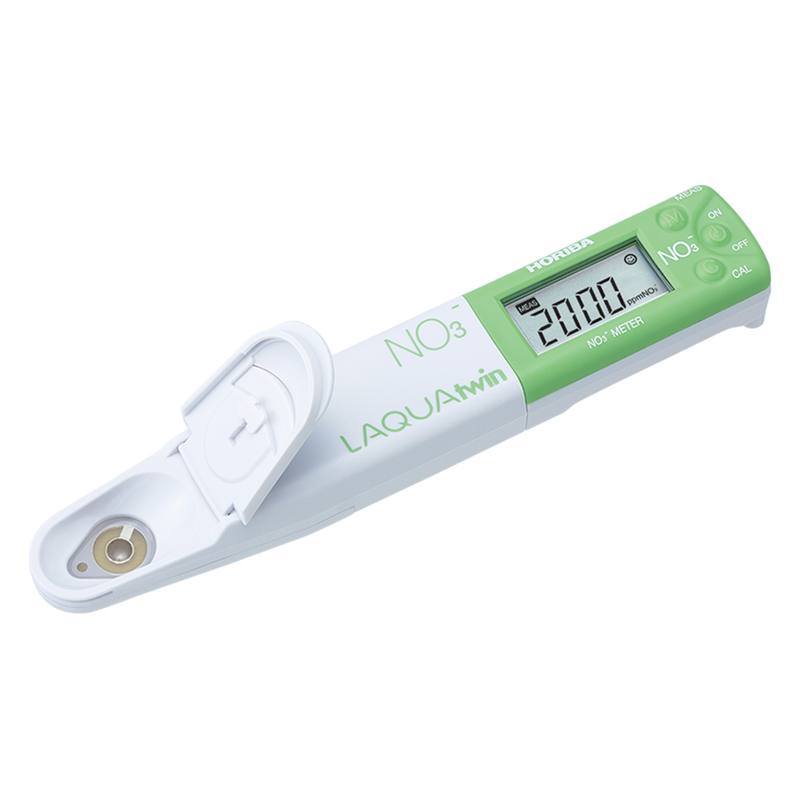

Model #Laqua NO3-11 || Made in Japan
HORIBA's unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.
The only pocket meter that directly measures nitrate ion and nirate-nitrogen concentrations in 0.3ml sample (or 0.05ml sample with sampling sheet B). Unique sensor allows measurement of viscous liquids, solids, and even powder samples. No need for a beaker to calibrate your meter or measure a sample. Just place few drops of the standard or sample onto the flat sensor. This procedure saves you time and prevents wasting your precious sample.
Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
Up to 2 calibration points
Auto standard recognition
Changeable high and low calibration values
Multiplication compensation: 0.01 to 9.90
Temperature and mV display
Temperature calibration: 5 to 40.0 ºC
Auto hold / auto stable measurement
Auto power off: 30 mins.
Low battery indicator
IP67 Rating dust & waterproof
Replaceable sensor
400 Hours battery life: continuous use without backlight
Material: ABS epoxy
Display: custom (monochrome) digital LCD with backlight
Operating conditions: 5 to 40 ºC, 85% or less relative humidity
Warranty: 2 years - meter, 6 months - sensor
Packed in handy carrying case
General use kit is supplied with: a case, dropper, 5 pipettes, cleaning solution bottle, 3 extraction bottles, 2 sets of spoons for soil sampling, tweezers, sampling sheet B (5 pcs), and sampling sheet holders.
Documentation
[PDF] LaquaTwin Pocket Meter Brochure
[Youtube] View Live demo here on Youtube
Suggested Readings: Measurement of Nitrate in Soil, Turf Grass, Sudangrass & Pearl Millet Hays, and Nitrogen in Onions.
| Specifications | Description |
|---|---|
| Measurement Principle | Ion Selective Electrode |
| Minimum Sample Volume | 0.3ml (0.05ml with sampling sheet B) |
| Nitrate (NO3-) Measurement Range |
6 to 9900 ppm (mg/L) |
| Nitrate-Nitrogen (NO3-N) Measurement Range |
1.4 to 2200 ppm (mg/L) 0.7 to 1100 kg/10a |
| Resolution |
0 to 99 ppm: 1 ppm 100 to 990 ppm: 10 ppm 1000 to 9900 ppm: 100 ppm |
| Accuracy | ± 10% of actual value |
| Calibration Points | Up to 2 |
| Temperature Display | 0 to 50.0 ºC |
| Display | Custom (monochrome) digital LCD with backlight |
| Operating Temperature | 5 to 40.0 ºC |
| Operating Humidity | 85% or less in relative humidity (no condensation) |
| Power | CR2032 batteries (2) |
| Battery Life | Approx. 400 hours in continuous use without backlight |
| Material | ABS epoxy |
| Dimensions | 164 x 29 x 20 mm (excluding projections) |
| Mass | Approx. 55 g (including sensor and batteries) |
| Functions |
|
