Is the Optika B-60 Entry Level Biological Microscope right for me?

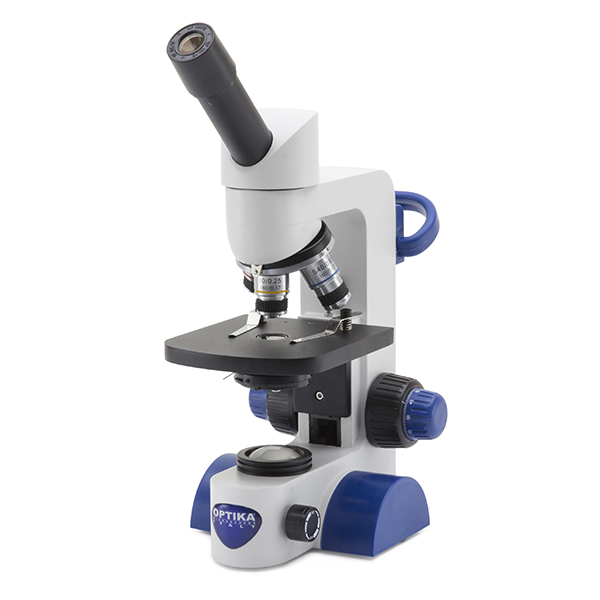

The Optika B-60 Series Mono- and Binocular Brightfield Microscopes are designed for novice users in a teaching environment, particularly with students in intermediate and grammar schools.


These are built to last with inexperienced users and offers a compact, light weight and durable solution to schools with a budget. In case of any damage or faults, there is a 1 year manufacturer's RTB warranty and labour with a further 9 years on all mechanical parts.


Running costs are extremely low with the energy saving LED which is expected to last over 20 years or 65,000 hours (8 hours/day for 22 years). This is 20 times more compared to a standard halogen bulb which you will find in competitor brands.


With 7 different models to choose from, you can tailor the head, mechanical stage and objectives to suit your teaching needs.


As with all of the Optika Microscopes, full technical support and service engineers are always available at Alphatech.

Summary: The Optika B-60 entry level brightfield microscopes are designed to be durable, with low running cost and are easy to teach and learn with, particularly with novice users such as students in schools.



Additional Resources (Common Questions & Answers Below)

Model Comparison Chart

PDF Brochure

EU Declaration Of Conformity



Optika B-60 Models

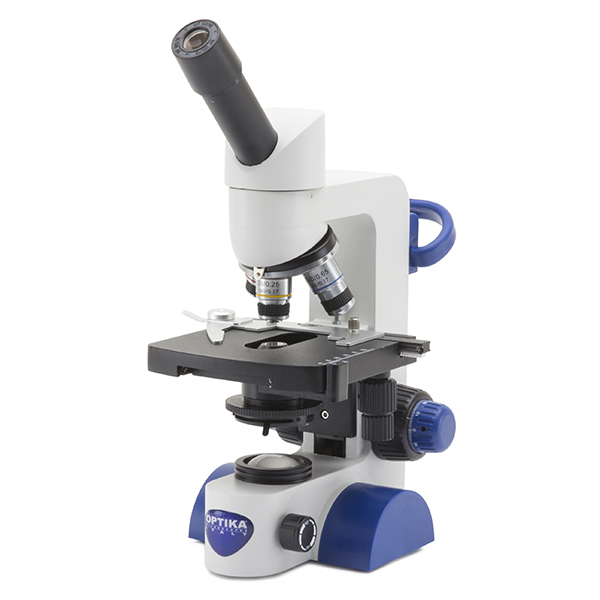

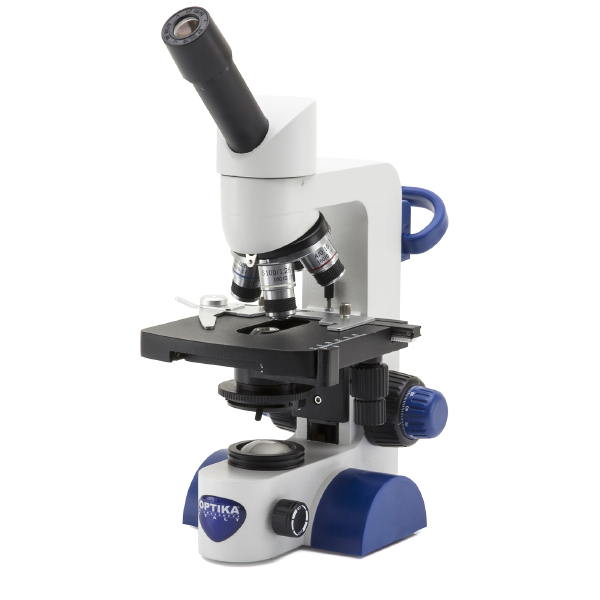

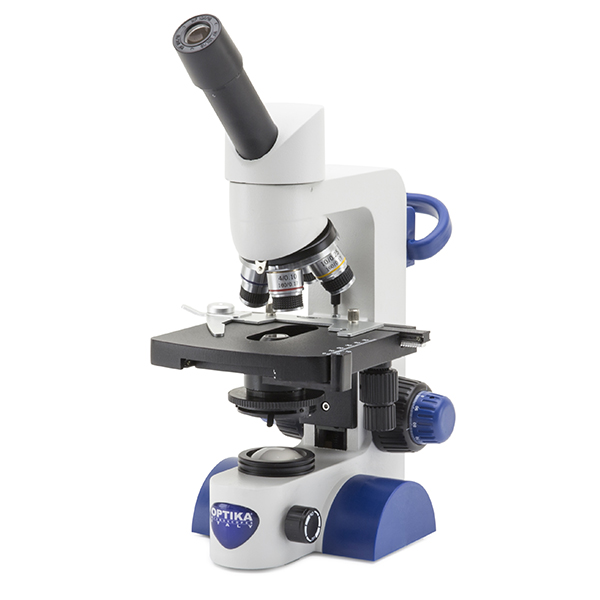

Model:            B-61 Monocular
Objectives:    Achromatic 4x, 10x, 40x
Stage:             Fixed, 120x110mm







Model:            B-62 Monocular
Objectives:    Achromatic 4x, 10x, 40x
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range







Model:            B-63 Monocular
Objectives:    Achromatic 4x, 10x, 40x, 60x
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range







Model:            B-65 Monocular
Objectives:    Achromatic 4x, 10x, 40x, 100x (oil)
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range

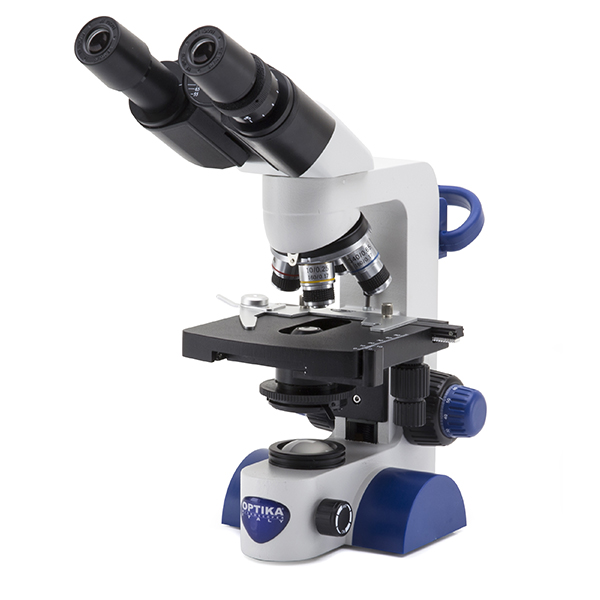

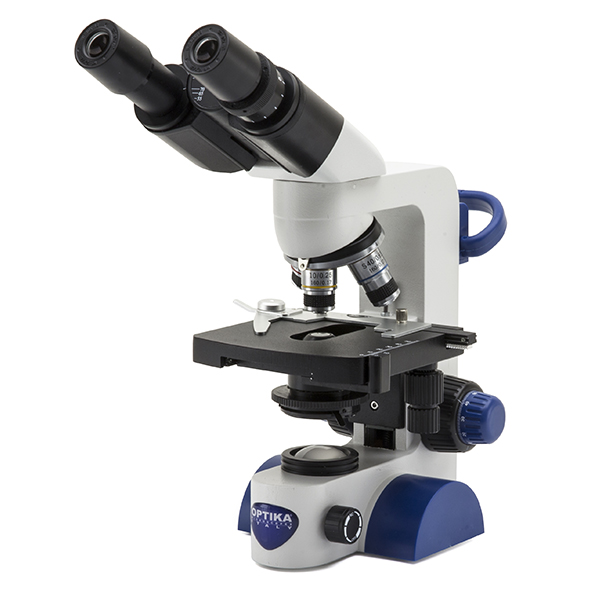

Model:            B-66 Binocular
Objectives:    Achromatic 4x, 10x, 40x
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range







Model:            B-67 Monocular
Objectives:    Achromatic 4x, 10x, 40x, 60x
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range







Model:            B-69 Binocular
Objectives:    Achromatic 4x, 10x, 40x, 60x, 100x (oil)
Stage:             Mechanical, 120x110mm with 62x24mm X-Y moving range
