Infrared w/Laser & Thermocouple Jack

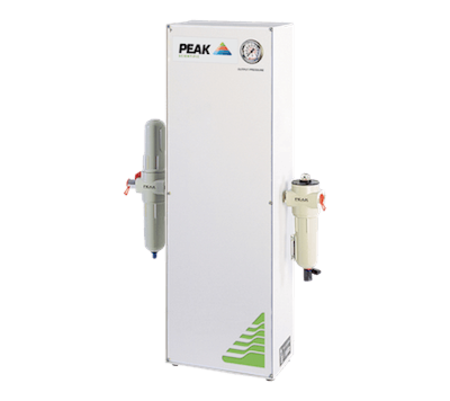

Infinity NM18L | Infinity NM32L | Infinity NM45L | |
Nitrogen (L/min) | 18 | 32 | 45 |
Inlet Air Requirement (L/min) | 50 | 90 | 135 |
Min/ Max Air Inlet Pressure | 125-145 psi | ||
Min/ Max Operating Temperature | 5°C (41°F) - 30°C (86°F) | ||
Particles | < 0.01 μm | ||
Suspended Liquids | None | ||
Phthalates | None | ||
Pressure Dewpoint | -40°C / 40°F | ||
Electrical Requirements | 110 - 230v 50/60 Hz | ||
Dimensions (cm / ins) WxDxH | 25 x 17 x 76 / 30 x 10 x 7 | ||
Weight (kg / lbs) |
13 / 29 |
