Material & Tensile Testing



Materials testing machines from Lloyd Instruments guarantee the highest level of performance and capability for production testing, quality control, laboratory testing, research and education to provide expert materials testing solutions.



Used to determine the physical and mechanical properties of raw materials and components, and ideal for product testing of finished goods such as plastics, packaging, medical devices, electronic components, textiles, metals, composites, paper and more, Lloyd Instruments manufactures and supplies universal testing machines (UTM) and tensile testers worldwide. As part of AMETEK, Inc. Lloyd Instruments has operations and technical distribution in over 80 countries.



testing-machines



Our wide range of material testing machines can test for tensile strength, compression, flexure, friction, tear, peel, adhesion, shear, ductility, insertion, shear strength and many other parameters. Our powerful NEXYGEN Plus material testing software is ideally suited for routine QC testing, R&D and complex multi-stage testing with added extensive automation features to provide error-free, rapid and repeatable tests. Choose from an extensive library of tests to international standards or customise the software to your own internal test methods. In-built security and audit trails ensures test data security.



Force and torque testing solutions are available worldwide from Lloyd Instruments distributor network. Chatillon® force measurement instruments have been a hallmark in the industry since 1835. They've earned their reputation for quality, reliability and accuracy and they represent the standard for force measurement.



Our Davenport polymer test instruments, specified in many international polymer and plastics testing standards, allows critical polymer parameters to be determined, including melt flow index and melt flow rate, intrinsic viscosity (IV) measurement of moisture-sensitive PET polymers and polymer density measurement.



Lloyd Instruments texture analysers have an international reputation for their high performance and cost effectiveness. Specially engineered food texture probes provide the platform to perform rapid, general food testing and detailed texture analysis on a diverse range of foods.

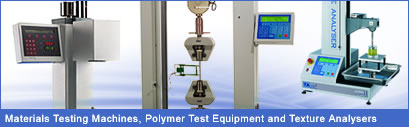

Materials Testing Machines


LS1 (1 kN, 225 lbf) Materials Testing Machine
Materials Testing Machine LS1 - Single Column Bench Mounted - 1kN (225lbf)
Friction Tester FT1

NEW PRODUCT:  LS1 Materials Testing Machine
NEW PRODUCT:  FT1 Friction Tester - friction tests to ASTM, ISO and TAPPI standards



Introducing a new generation single column high precision materials testing machine, the LS1 is designed to measure forces up to 1kN  (225lbf)  Ideal for routine quality control testing or complex multi-stage tests, this versatile material tester can perform a wide library of tests including tensile strength, compression, flexural, peel, shear, static and kinetic coefficient of friction and many more across many industries.

LS1 machine features include:

  • high mechanical stiffness for highest precision displacement measurement
  • a wide speed range 0.01-2032mm/min for faster testing and higher productivity
  • exceptional load accuracy fewer loadcells required to cover the full load range saving time and cost
  • a variety of control options possible for your convenience: stand alone operation via   a control console, alternatively using a PC or laptop and our acclaimed NEXYGENPlus analysis software
  • NEXYGENPlus software is Windows® 7 compatible featuring an improved and intuitive User Configurable Test functionality complementing the comprehensive test standards library

LS2-5-Small
NEW! Materials Testing Machine LS2.5 - Single Column Extended Travel 2.5 kN (572 lbf)


The LS2.5 is a high precision materials testing machine particularly suited for plastic, rubber and other high elongation materials due to its wide crosshead travel capability and high speed.

The machine is capable of tensile, compression, flexural, peel, shear, friction testing and more.  Flexible, easy to use and maintain, the LS2.5  offers high accuracy position measurement, rapid data acquisition, multi-lingual and multi-unit display options as well as full PC integration with NEXYGENPlus material test and data analysis software.


LS5-Small
NEW! Materials Testing Machine LS5 - Single Column Bench Mounted 5 kN (1124 lbf)


Lloyd Instruments offers a range of affordable single column test machines for a wide variety to test applications up to 5 kN (1124 lbf).

All machines are capable of tensile, compression, flexural, peel, shear, friction testing and more.  Flexible, easy to use and maintain, they offer high accuracy position measurement, rapid data acquisition, multi-lingual and multi-unit display options as well as full PC integration with NEXYGENPlus material test and data analysis software

5kN-50kN
Material Testing Machines - Twin Column Bench Mounted
5-50 kN (1124-22481 lbf)


For applications in the mid force range, Lloyd Instruments offers a wide range of testing machines and accessories for forces up to 50 kN (11241 lbf).

Ideal for routine quality control testing or complex multi-stage tests, all machines can perform tensile, compression, flexural, peel, shear, friction tests and many more. Flexible, simple to use and maintain, they provide high accuracy load measurement and are capable of a rapid 8 kHz data acquisition rate. The stand alone system can store up to 600 test results from 10 programmable test set-ups or, with PC integration with Lloyd Instruments powerful NEXYGENPlus material test and data analysis software, can perform advanced data analysis.

LR100KPlus Materials Testing Machine
Material Testing Machines - Twin Column Floor Standing
100-150kN (22481-33722 lbf)

For high force applications in the range 100 kN to 150 kN (22481 lbf - 33722 lbf), Lloyd Instruments provide a range of robust, heavy duty test machines.

All systems are floor standing, apart from the bench-mounted LS100Plus 100 kN (22481 lbf) machine, and feature a large working area.  Simple to set up, operate and maintain, all machines display high accuracy load measurement and rapid data acquisition. Full PC integration with Lloyd Instruments'advanced NEXYGENPlus material test and data analysis software.



Materials Testing Software

NEXYGEN logo6
NEXYGENPlus Material Test and Data Analysis Software


NEXYGENPlus multi-lingual materials testing software is the hub of the Lloyd Instruments Plus Series materials testing system . This extraordinarily easy to use and flexible software, allows the operator to control and monitor all aspects of the system from a single front end, ensuring fast, reliable and powerful testing and data analysis for tensile, compression, peeling, tearing, creep, relaxation and  flexural test applications.



With NEXYGENPlus software, the user can simply select from the extensive library of pre-defined test set-ups based on international standards to set up routine tests or create an advanced multi-stage test, all using the same program. Still picture and video capture are also included in the software as well as a powerful security and audit trail module to provide 100% traceability, full automation capability for automatic testing and much more.



Minimum Computer Specifications
The minimum recommended computer specifications required to use NEXYGENPlus are:

  • 2GHz Pentium® IV Processor or better fitted with 1Gb RAM (minimum) (Recommended Higher)
  • Unused COM Port with a 16550 UART
  • Second COM Port for Optional Auto Start
  • CD ROM drive
  • Microsoft® Word (2000 or later)
  • Microsoft® Access® for Security Module maintenance (unless another advanced database is to be used)
  • Windows® XP or Vista® ONLY
NEXYGEN MT
NEXYGEN™ MT Materials Test and Data Analysis Software and
Ondio™ Application Builder Software

NEXYGEN™ MT material test and data analysis software and Ondio application bulider software packages can be used with all Lloyd Instruments LR Series materials testing machines.

Minimum Computer Specifications
The minimum recommended computer specifications required to use NEXYGEN MT are:
  • 2GHz Pentium® IV Processor or better fitted with 1Gb RAM (minimum) (Recommended Higher)
  • Unused COM Port with a 16550 UART
  • Second COM Port for Optional Auto Start
  • CD ROM drive
  • Microsoft® Word (2000 or later)
  • Microsoft® Access® for Security Module maintenance (unless another advanced database is to be used)
  • Windows® XP or Vista® ONLY

For all current Plus Series materials testing machines, see details for NEXYGENPlus software above.



Texture Analysers

TA1 Texture Analyser
TA1 Texture Analyser


The TA1 texture analyser is an easy to use, cost effective solution to evaluate the textural properties (compression, shear, extrusion, puncture, hardness forces etc) of a wide range of products at all stages of manufacture. It can perform rapid, detailed texture profile analysis (TPA) for applications up to 102 kgf (1 kN, 225 lbf).

For enhanced performance, the TA1 can be used with Lloyd Instruments NEXYGENPlus data analysis software.



Polymer Test Instruments

Melt Flow Indexers
Melt Flow Indexers


The Davenport Melt Flow Indexer is used to determine the melt flow properties of a polymer by extruding it in a molten state, through a calibrated die using a reference weight. It is used extensively in production and quality control to ensure batch-to-batch consistency and is renowned for accuracy, repeatability, and reproducibility of results.  Two models are available, the manual MFI-9 and the automatic MFI-10.

PET<i>Plus</i> Instrument for IV Measurement of PET
PETPlus Instrument for the Intrinsic Viscosity (IV) Measurement of PET Polymers

The Davenport PETPlus is a unique test instrument designed for fast and safe solvent-free intrinsic viscosity (IV) measurement of moisture-sensitive polyethylene terephthalate (PET). The instrument can be operated in stand alone mode to provide on screen results or used with our powerful data analysis software package NEXYGENPlus PET.  Existing solvent methods for determining IV involve the need to handle and dispose of toxic solvents.  This preferred method is both kinder to the environment and saves on the high costs of purchase and disposal of solvents.
Density Gradient Column
Density Gradient Columns

Davenport density measuring columns are designed to measure the density of solid materials, notably plastics, according to BS2782 Part 6 Method 620D, ASTM D1505-68, ISO 1183 and others. It is also a quick comparative test, ideal for discerning density differences between similar materials.

Friction Tester
Friction Testers

For use in the packaging and printing industries, the Lloyd Instruments FTPlus coefficient of friction tester accurately measures static and kinetic coefficient of friction.  These values are of importance in a wide range of industries including blown film, plastic sheet, paper and coating manufacture.

The FTPlus is a dedicated friction tester conforming to the requirements of ASTM D1894, ISO 8295 and TAPPI T549.  The tester includes these standards as user configurable tests, with a further seven available for user custom configuration.

When using NEXYGENPlus material test and data analysis software, the FTPlus may also be configured as a universal material tester to perform tensile, compression, flexural and other mechanical tests up to 1 kN (225lbf).



Force Measurement Instruments

Force Measurement Instruments from Chatillon

Chatillon banner



Chatillon is a leading manufacturer and global supplier of force measurement instruments and systems for production, quality and R&D in a host of applications and markets.




.
